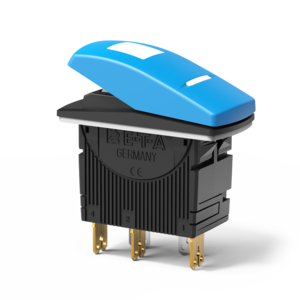

3131-A
Thermal circuit breaker with rocker actuation,
single pole, water splash protected (IP66)

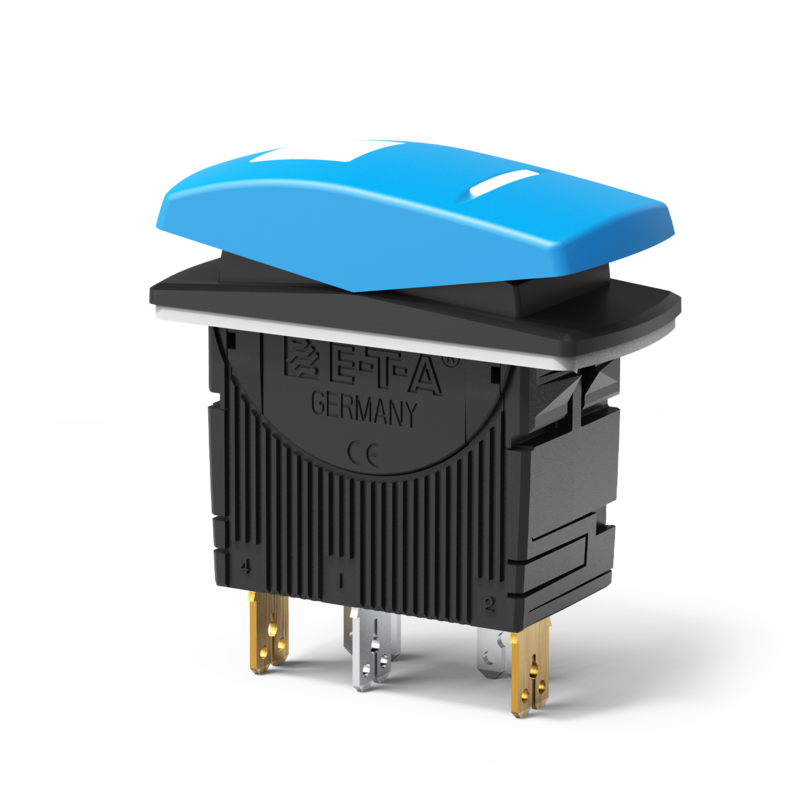

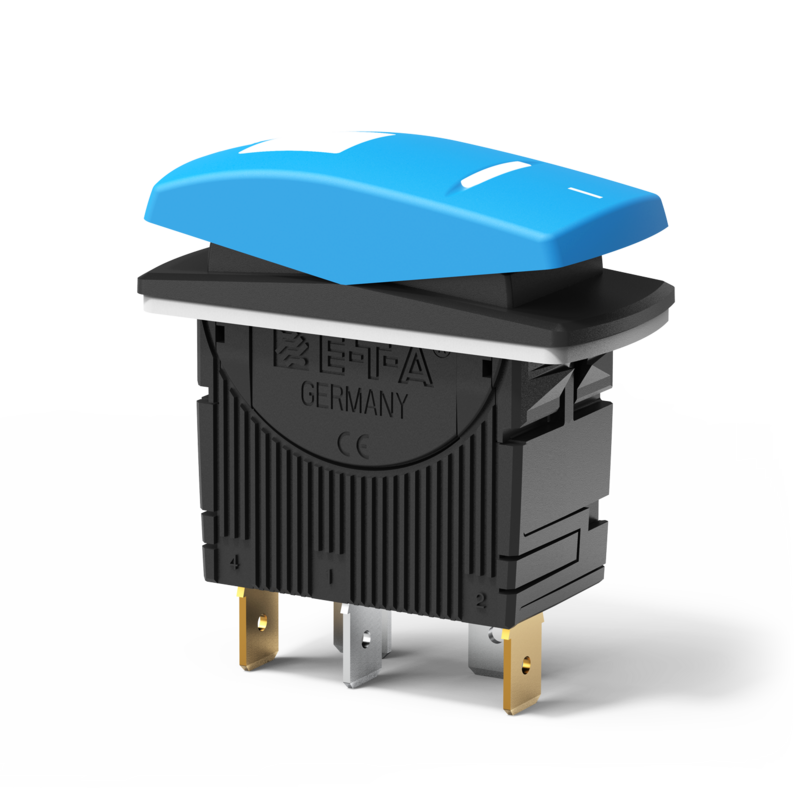

Type 3131-B
~ 51 mm
Description
Single pole three-position switch with latching or momentary switch functions. Featuring a soft-touch contoured rocker actuator with optional illumination. The 3131 ist sealed to provide IP66 rated front of panel water splash protection.
Technical Data
| Voltage rating |
|
|---|---|
| Current ratings |
from 20A up to 20 A |
| Number of poles | single pole |
| Mounting method | flange |
| Terminal design | blade terminals |
| Actuation | rocker |
| Auxiliary contacts | without auxiliary contacts |
| Water splash protection | without water splash protection |
| Illumination |
with illumination without illumination |
| Typical life | 30,000 operations at 1 x IN, inductive |
| Certificates | UL 1500 Ignition Protected |
Accessories
| Order number | Description | |
|---|---|---|
| X3131 |
actuator for type 3131 with various marking symbols |
|
| Y30879001 |
mounting frame side piece |
|
| Y30879101 |
mounting frame centre piece |
Applications
- Lighting technology
- Watercraft & Vehicles
