Type 1626

~ 41 mm

Description

Data sheet

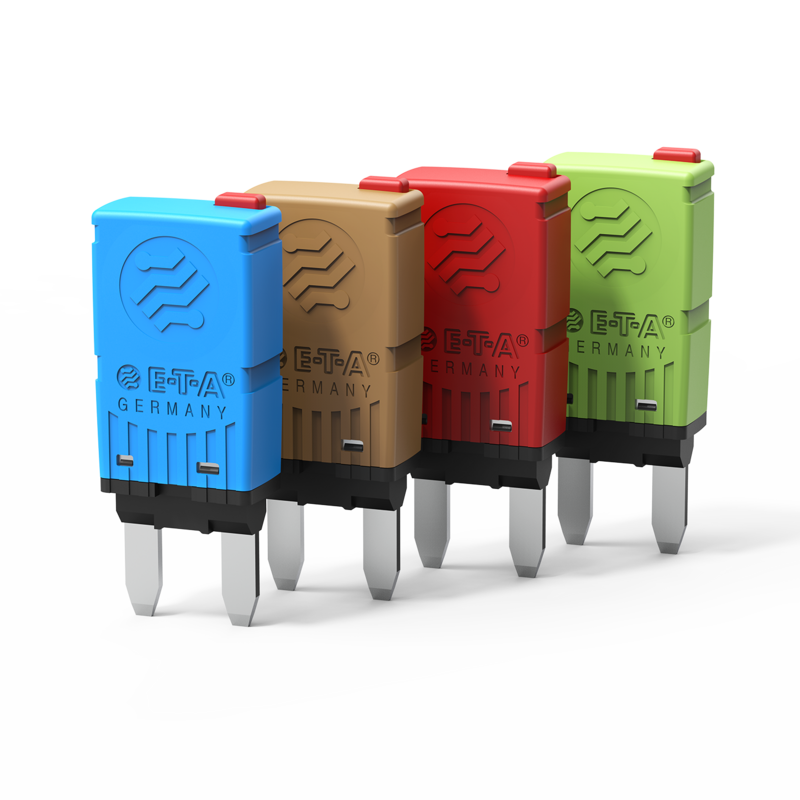

Single pole, thermal miniaturised circuit breaker designed for automotive applications. Fits into fuse blocks designed to ISO 8820-3, Type F.

Current ratings correspond to those of blade fuses. Clear colour coding of the ratings: blade fuse and circuit breaker of the same colour have the same rating.

Meets the requirements of SAE J553.

Fast trip curve to ISO 10924 for direct replacement of automotive fuses.

Technical Data

Voltage rating
  • DC 12 V
  • DC 24 V
Current ratings from 5A up to 30A
Number of poles single pole
Mounting method socket
Terminal design blade terminals
Actuation manual release
push button
Typical life 300 operations at 2 x IN
Interrupting capacity Icn ≥ 3 break operations at 150 A, or

≥ 1 break operation at 2,000 A

Applications

  • Automobiles
  • Commercial Vehicles
  • Watercraft & Vehicles
