Type 105

~ 47 mm

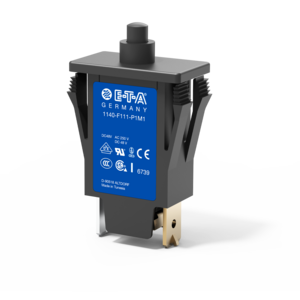

Typ 105 von E-T-A: Einpoliger, thermischer Schutzschalter in Kleinbauweise, wahlweise mit Handauslöser.

Description

Miniaturised single pole thermal circuit breaker with push-to-reset tease free, trip-free, snap action mechanism (R-type TO CBE to EN 60934) snap-in type.

Approved to CBE standard EN 60934 (IEC 60934). For higher current ratings see type 1140-F.

Technical Data

Voltage rating
  • AC 240 V
  • DC 48 V
  • UL/CSA: AC 250 V
Current ratings from 0.05 A up to 10 A
Number of poles single pole
Mounting method flange
Terminal design blade terminals
Actuation manual release
push button
Auxiliary contacts without auxiliary contacts
Water splash protection without water splash protection
Illumination without illumination
Typical life 0.05...5 A: 3,000 operations at 2 x IN, inductive

with -H: 2,000 operations at 1 x IN, inductive

6...8 A: 500 operations at 2 x IN, inductive

10 A: 50 operations at 2 x IN, inductive
Interrupting capacity Icn 0.05...8 A: 6 x IN (AC)

0.05...10 A: 6 x IN (DC)
Certificates VDE, SEV, CSA, UL

Accessories

Order number Description
X20128501

splash cover transparent

Y30711702

knurled nut

Y30019201

hex nut

Applications

  • Household, Hobby & Garden Equipment
  • Lighting technology
  • Medical technology
  • Minus DC 48 V
  • Telecom & Datacom
