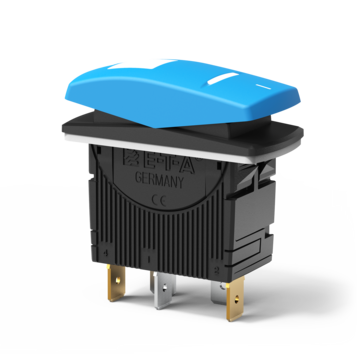

3131-B
Single pole three-position switch, water splash protected (IP66)

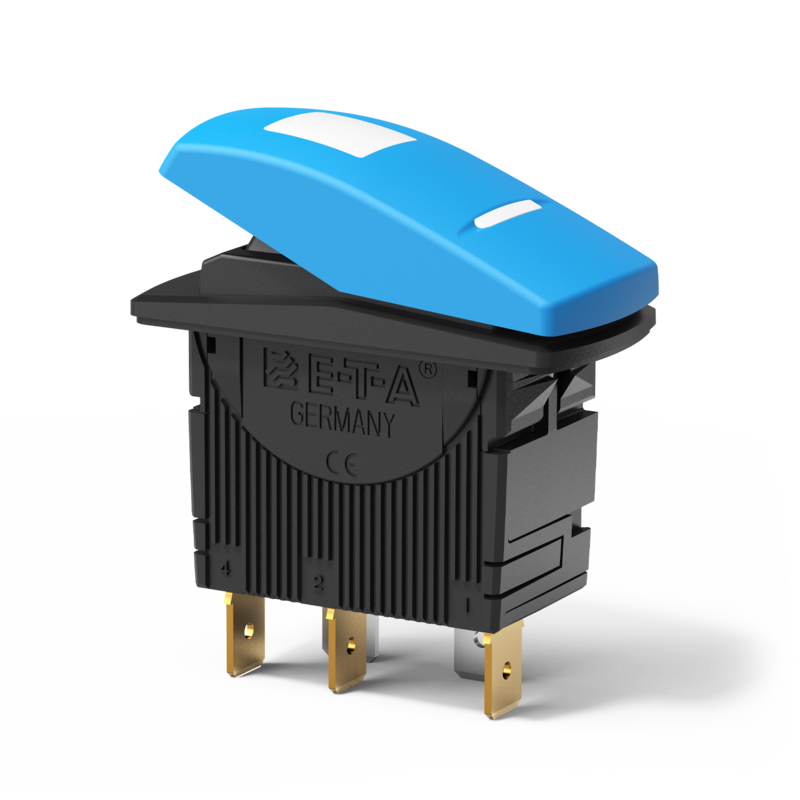

Type 3131-A
~ 51 mm
Description
Combination of single pole circuit breaker and ON/OFF switch with soft-touch rocker actuation. Contoured rockers are available with a choice of colours and legends, with optional illumination. The 3131 is sealed to provide IP66 rated front of panel water splash protection.
It meets the requirements of circuit breaker standard EN 60934 (IEC 60934): S type, TO.
Technical Data
| Voltage rating |
|
|---|---|
| Current ratings |
from 0.1 A up to 20 A |
| Number of poles | single pole |
| Mounting method | flange |
| Terminal design |
blade terminals screw terminals |
| Actuation | rocker |
| Auxiliary contacts | without auxiliary contacts |
| Water splash protection | without water splash protection |
| Illumination |
with illumination without illumination |
| Typical life | 30,000 operations at 1 x IN, inductive |
| Interrupting capacity Icn |
0.1...2 A: 10 x IN 2.5...20 A: 200 A |
| Certificates | UL 1500 Ignition Protected UL 1077 VDE (EN 60934) |
Accessories
| Order number | Description | |
|---|---|---|
| X3131 |
actuator for type 3131 with various marking symbols |
|
| Y30879001 |
mounting frame side piece |
|
| Y30879101 |
mounting frame centre piece |
Applications
- Household, Hobby & Garden Equipment
- Lighting technology
- Medical technology
- Watercraft & Vehicles
