Type 3130-F

~ 51 mm

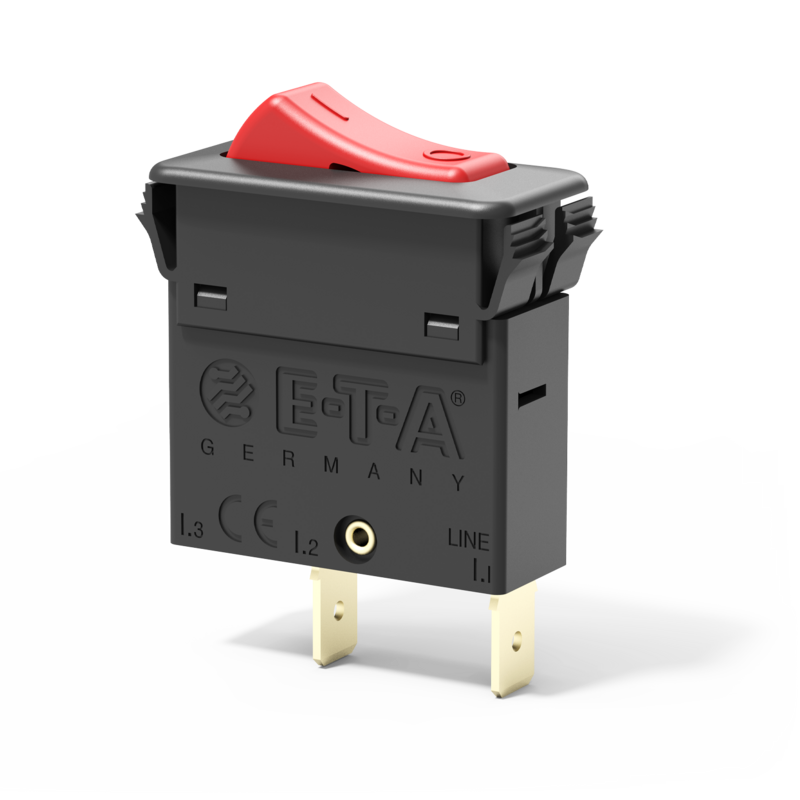

Typ 3130-F von E-T-A: Ein- bis dreipolige Kombination Schutzschalter/Ein-Aus-Schalter oder Taster mit Schaltwippe

Description

Single, two and three pole rocker switch/thermal trip free circuit breakers (S-type TO CBE to EN 60934) of compact design for snap-in panel mounting. Available either with protection on one/both/all poles or, in the case of the double pole version, protection on one pole only. Illumination is optional and there is a choice of rocker colours.

Approved to CBE standard EN 60934 (IEC 60934). Also available with X3130 Power Entry Module.

Technical Data

Voltage rating	3 AC 415 V AC 240 V DC 50 V UL/CSA: 3 AC 250 V UL/CSA: AC 250 V
Current ratings	from 0.1 A up to 20 A 1 pole from 0.1 A up to 16 A 2 and 3 pole
Number of poles	double pole single pole three pole
Mounting method	flange
Terminal design	blade terminals screw terminals
Actuation	rocker
Auxiliary contacts	without auxiliary contacts
Water splash protection	with water splash protection without water splash protection
Illumination	with illumination without illumination
Typical life	30,000 operations at 1 x I_N, inductive, 1 and 3 pole 50,000 operations at 1 x I_N, inductive, 2 pole
Interrupting capacity I_cn	0.1...2 A: 10 x I_N 2.5...20 A: 150 A 1 pole 2.5...16 A: 250 A 2 pole 2.5...12 A: 150 A 3 pole 14...16 A: 130 A 3 pole
Certificates	VDE, UL, CSA

Accessories

Order number	Description
X22125801	splash cover transparent for 3-pole version
X222420...	rocker, symbols/legends available

Applications

Household, Hobby & Garden Equipment
Lighting technology
Medical technology
Minus DC 48 V
Telecom & Datacom
Watercraft & Vehicles

Downloads

Datasheet & Explanations

Data sheet 507.9 KB

Declaration of Conformity | 2

Declaration of Conformity for circuit breaker 132.7 KB
Declaration of Conformity for switch only 90.1 KB

CAD data | 4
