Type 413

~ 83 mm

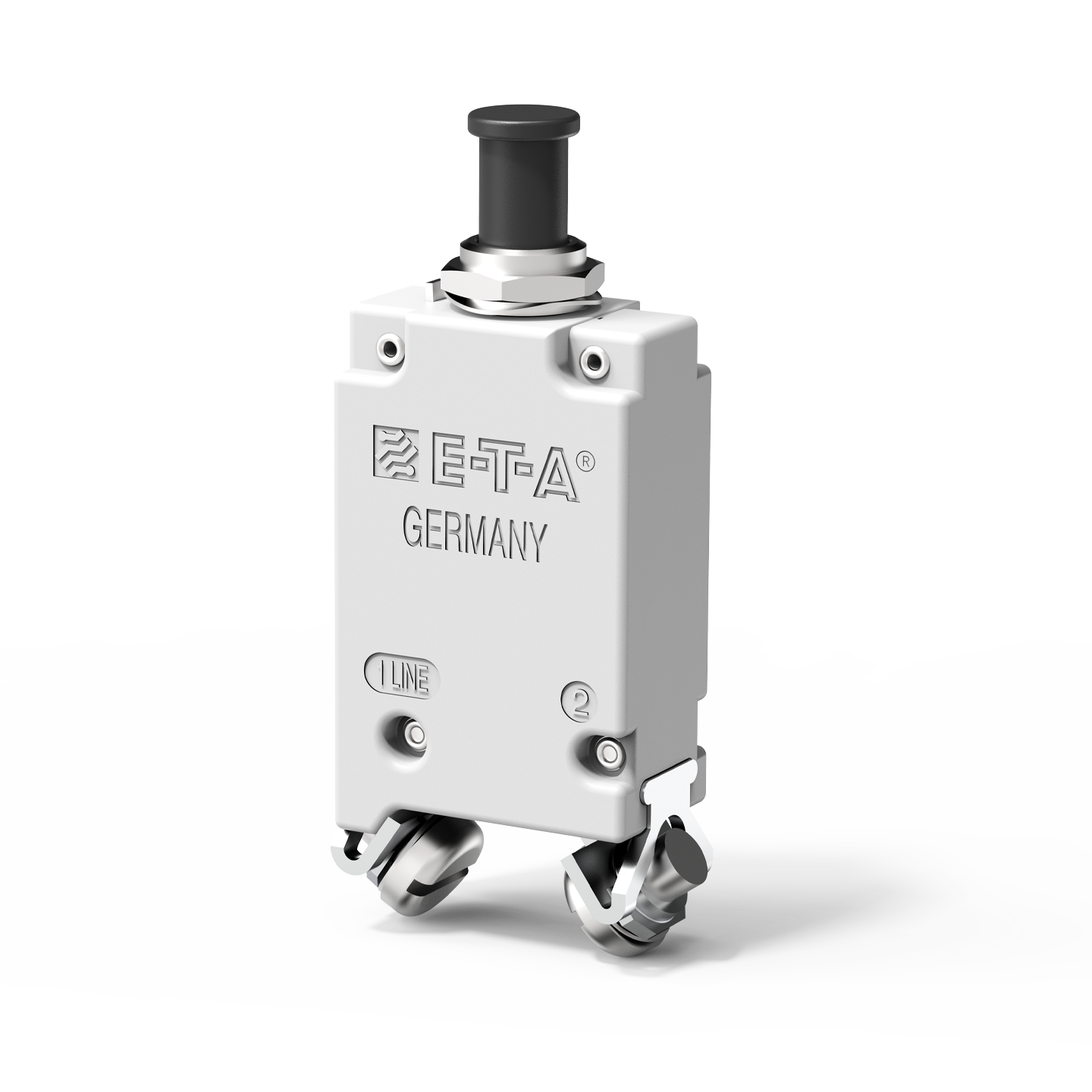

Typ 413 von E-T-A: Einpoliger, thermischer Schutzschalter mit Gewindehalsbefestigung und Druck/Zug-Betätigung.

Description

Single pole high performance thermal circuit breaker with tease-free, trip-free, snap action mechanism and push/pull on/off manual actuation (M-type TO CBE to EN 60934). An indicator band on the push button clearly shows the tripped/off position. Threadneck panel mounted and available in tracked vehicle, aircraft and general purpose versions.

Technical Data

Voltage rating
  • DC 28 V
  • AC 115 V (400 Hz) upon request
Current ratings from 30 A until 55 A  (-FN)
from 30 A until 90 A  (-LN/-N)
Number of poles single pole
Mounting method socket
threadneck
Terminal design screw terminals
Actuation manual release
push button
Auxiliary contacts without auxiliary contacts
Water splash protection with water splash protection
without water splash protection
Illumination without illumination
Typical life 2,000 operations at 1 x IN
Interrupting capacity Icn DC 28 V: 6,000 A
Certificates UL, QPL Sweden

Accessories

Order number Description
X20080103

splash cover black with O-ring

X20080108

splash cover transparent with O-ring

X20080201

splash cover black with O-ring,

nickel plated nut

X20080202

splash cover black with O-ring,

matt black finish nut

X20080301

actuator extension

Y30700401-05

identification collar

Y30700501

lock out ring

Applications

  • Aerospace
  • Commercial Vehicles
  • Household, Hobby & Garden Equipment
  • Minus DC 28 V
  • Rail vehicles
  • Watercraft & Vehicles
