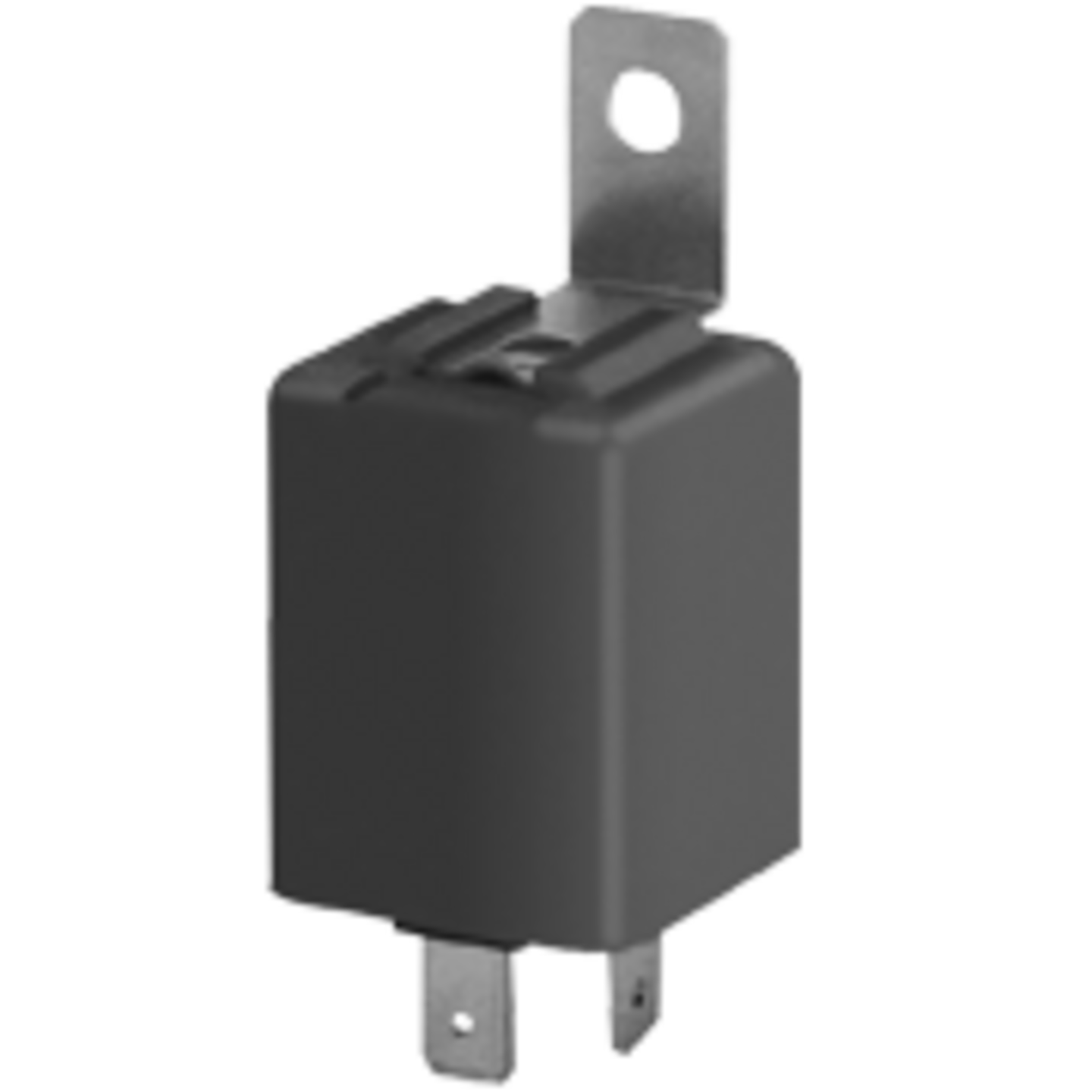

Type TR20-4D5-1-xxM
Description
Relais activé et temporisé à l’excitation. DC 24 V, contacts NO/NC 10 A, brochage selon ISO 7588 la temporisation en minutes est fixe et paramétrée en usine
Technical Data
| Voltage rating of load | DC 24 V |
|---|---|
| Operating voltage of SSRPC | DC 18...36 V |
Applications
- Automobiles
- Commercial Vehicles
- Household, Hobby & Garden Equipment
- Mechanical engineering
- Watercraft & Vehicles
Downloads
- Data sheet 52.0 KB
Declarations of conformity | 5
- RMI CMRT 1.7 MB
- RMI EMRT 1.8 MB
- Statement on per- and polyfluoroalkyl substances (PFAS) 180.1 KB
- REACH 310.1 KB
- TSCA Letter of Confirmation 244.1 KB
THE RIGHT PRODUCT IS NOT LISTED?
You need other variants (housing, socket, PIN assignment, further inputs and outputs)? We have other hardware platforms that can be customized.
If required, we will be happy to advise you:
