Type 3120-N...-...M1-...

~ 82

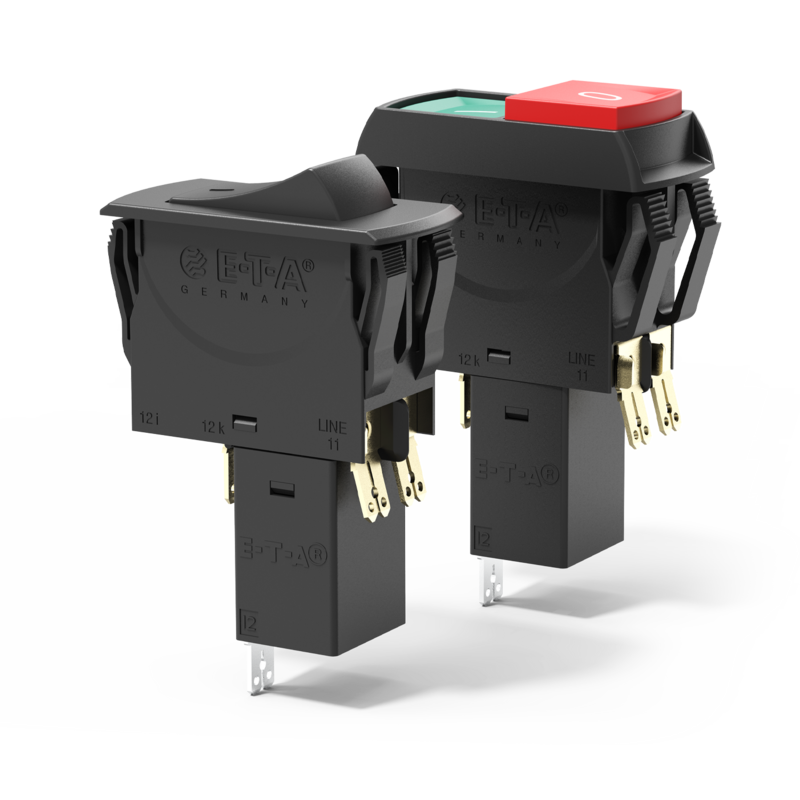

Typ 3120-N…-…M1-… von E-T-A:  thermisch-magnetischer Kombi-Schutzschalter

Description

The 3120-N...-...M1-... thermal-magnetic circuit breaker/switch combination unites overcurrent protection and the function of an ON/OFF switch within a single component. The integral thermobimetal ensures ideally matched overload protection. The magnetic trip module trips the circuit breaker/switch combination at overload currents from four times rated current within milliseconds.

The 3120-N...-...M1-... meets the fire resistance requirements to EN 60335-1: 2007-02 Household and similar electrical appliances – Safety.

For detailed information please see data sheet page 19 ff.

Technical Data

Voltage rating
  • AC 240 V, DC 50 V
  • AC 415 V upon request
Current ratings 0,1 ... 16 A
Number of poles double pole
single pole
Mounting method flange
Terminal design blade terminals
screw terminals
Actuation push button
rocker
Water splash protection with water splash protection
without water splash protection
Illumination with illumination
without illumination
Typical life 1-pole
AC 240 V:
0,1 ... 16 A 30 000 operations at 1 x IN, inductive

DC 50 V:
0,1 ... 4 A 30 000 operations at 1 x IN, inductive
4,5 ... 16 A 30 000 operations at 1 x IN, resistive

DC 28 V:
0,1 ... 16 A 30 000 operations at 1 x IN, inductive

2-pole
AC 240 V:
0,1 ... 16 A 50 000 operations at 1 x IN, inductive

DC 50 V:
0,1 ... 16 A 50 000 operations at 1 x IN, inductive
Interrupting capacity Icn (IEC/EN 60934)
1, 2-pole: IN 0,1 ... 2 A, UN AC 240 V / DC 28 V, Icn 100 x IN
1-pole: IN 0,1 ... 10 A, UN DC 50 V, Icn 50 A
1-pole: IN 2,5 ... 16 A, UN AC 240 V / DC 28 V, Icn 200 A
2-pole: IN 0,1 ... 2 A, UN DC 50 V, 10 x IN
2-pole: IN 2,5 ... 16 A, UN DC 50 V, Icn 250 A
2-pole: IN 2,5 ... 16 A, UN AC 240 V / DC 28 V, Icn 300 A
Certificates VDE, UL, CSA, CCC, KC

Accessories

Order number Description
Y30367502

spacer for -F3/N3...



panel thickness < 4 mm

Y30367601

spacer for -F5/N5...

Applications

  • Household, Hobby & Garden Equipment
  • Industrial equipment control
  • Medical technology
