ControlPlex® System EM12D

Typical application

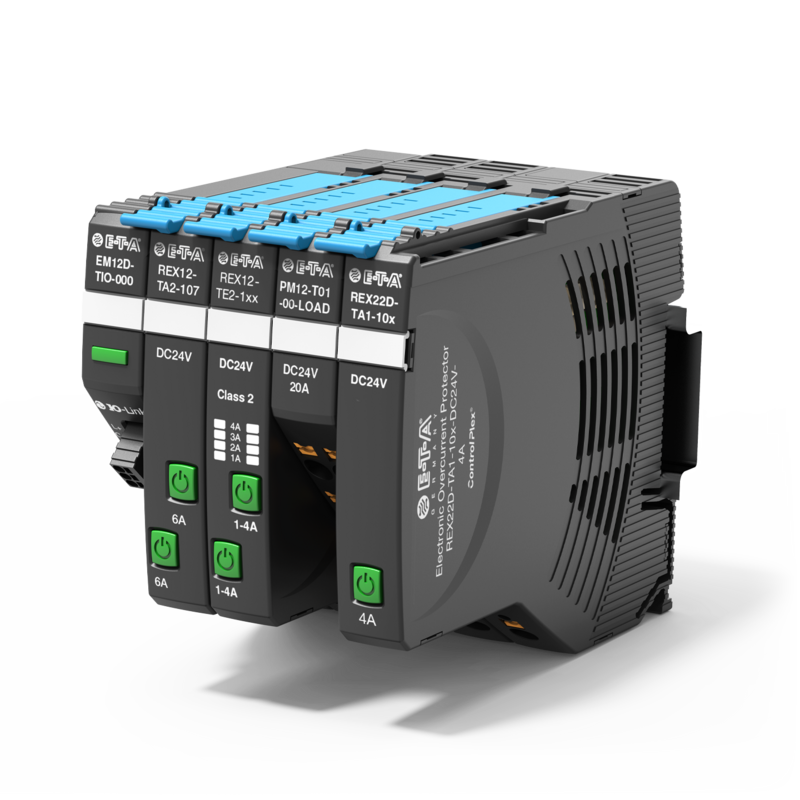

Thanks to its compact modular design, the communication-capable REX system with EM12D-T supply module enables space-saving integration in control cabinets with limited installation space - ideal for modern, densely equipped system concepts.

APPLICATIONS

• Mechanical and plant engineering

• Industrial automation

• Process industry

TECHNOLOGY

The EM12D-T power supply module receives the DC 24 V supply voltage and distributes it to the connected intelligent REX12D/REX22D circuit protectors via the integral connector arm. It receives the status information and the actual current values of the circuit protectors and transmits these to the superordinate control system via the IO link or Modbus RTU interface.

System components

EM12D-TIO

Communicative power supply module with IO link connection, DC 24 V

EM12D-TMB

Communication-capable power supply module with Modbus RTU connection, DC 24 V

REX12D-T

Electronic circuit breaker, REX12D-T, DC 24 V, rail mounting, fixed and variable current ratings, no. of channels 1/2, IO link, Modbus-RTU

REX22D-T

Electronic circuit breaker, REX-System BASE, REX-System COM

Optional components

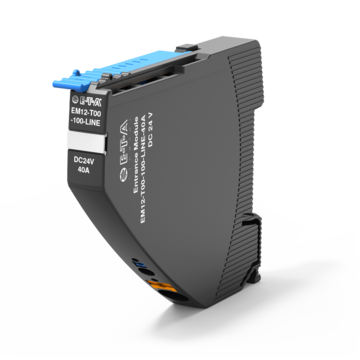

EM12-T (LINE)

Intermediate supply module, DC 24 V / DC 48 V

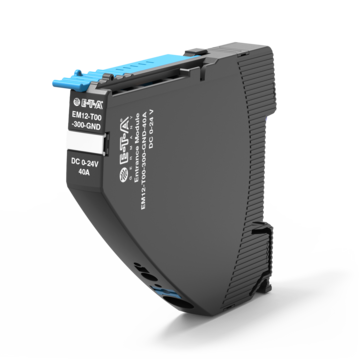

EM12-T (GND)

Supply module, DC 0 V

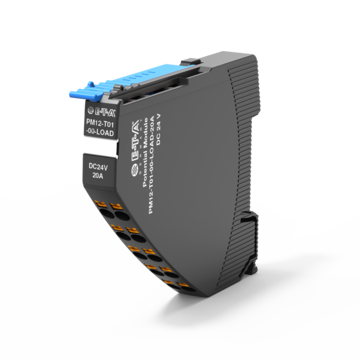

PM12-T (LOAD)

Potential distribution, DC 24 V

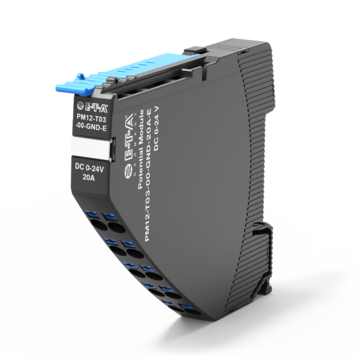

PM12-T (GND)

Potential distribution, DC 0 V
