Intelligent ControlPlex®-System

The intelligent ControlPlex® systems are communicative protection and power distribution solutions for 24 V DC applications. They combine reliable overcurrent protection with communication capabilities via EtherNet/IP, PROFINET, EtherCAT, Modbus TCP, Modbus RTU, and IO-Link.

These systems feature a modular design and capture all status information and measured values ​​from the connected circuit breakers. The data is transmitted to the higher-level control system, where it can be utilized for comprehensive analysis.

This establishes the necessary transparency to detect changes in the manufacturing process at an early stage and take appropriate countermeasures.

Product comparison

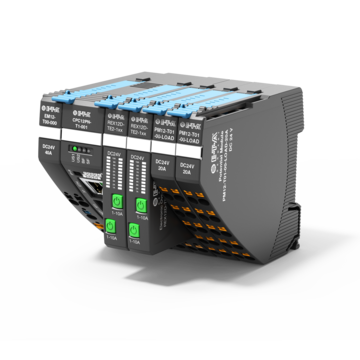

ControlPlex® System CPC12

Transparency through web server and fieldbus connectivity

System product

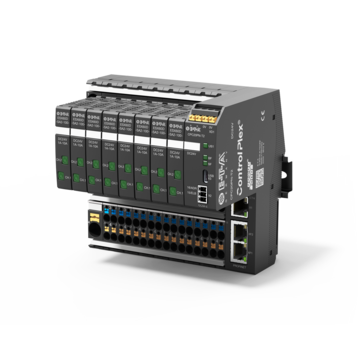

ControlPlex® System CPC20

The intelligent way of protecting 24 V DC systems

System product

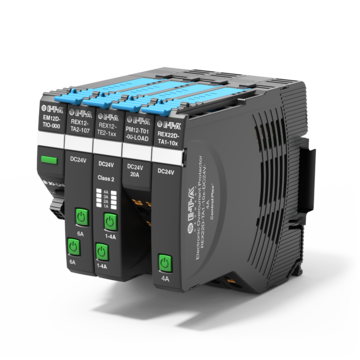

ControlPlex® System EM12D

Intelligent REX12D circuit protection system incl. power supply module for IO-Link connectivity

System product
Product comparison
