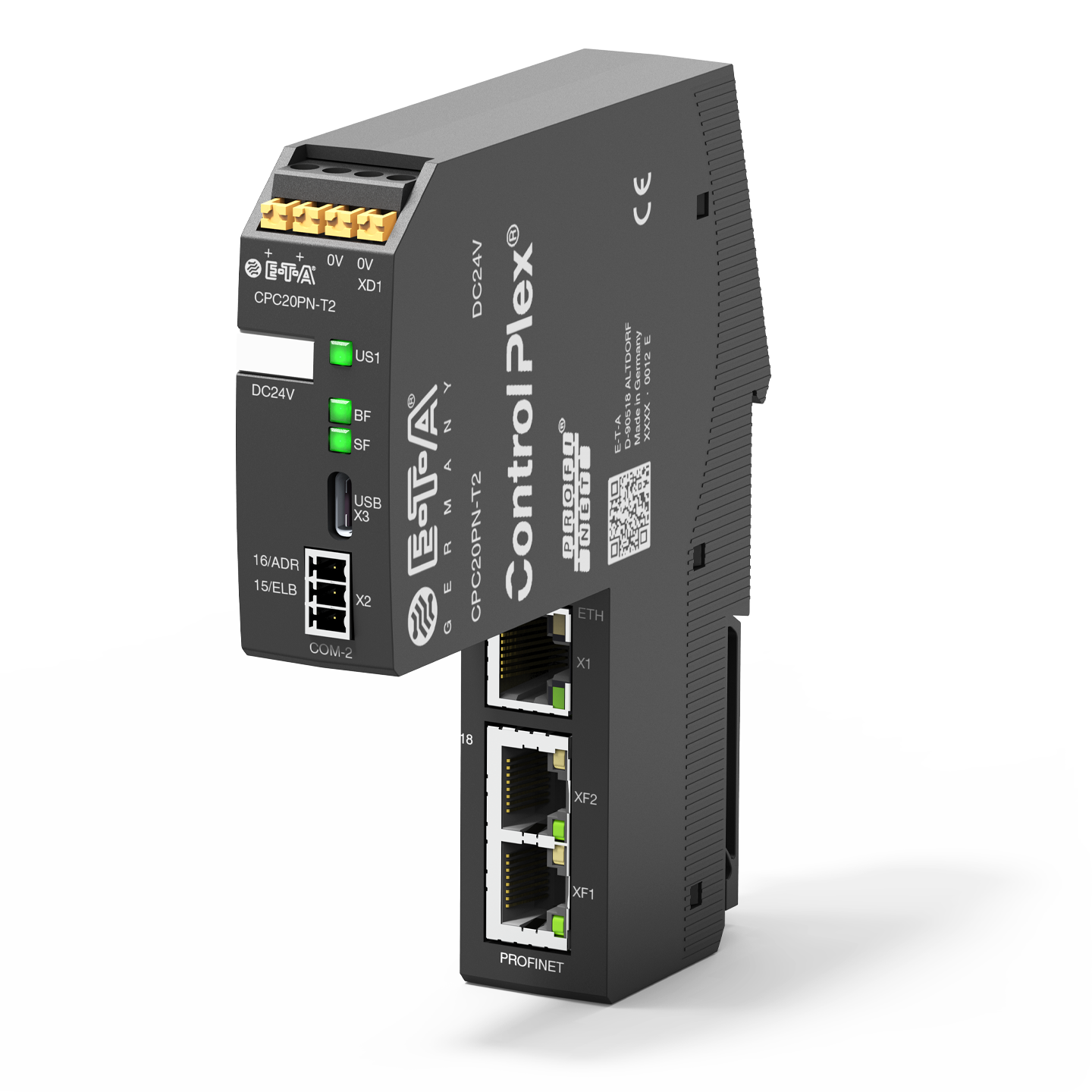

Type CPC20
Description
The intelligent CPC20 ControlPlex® bus controller combines DC 24 V overcurrent protection with the communication-capability of EtherNet/IP and PROFINET. It features permanent measuring data recording, analysing and processing. This provides the required transparency to detect changes in the production process at an early stage and initiate corrective actions in time.
The integral web server of the CPC20 bus controller allows direct access to the data of the DC 24 V power distribution. All measuring data and status information can be accessed without using the field bus interface.
Applications
- Process industry
- Mechanical engineering
- Automation
SOFTWARE for ControlPlex® systems:
The relevant software and firmware can be found in the download portal
Technical Data
| Rated voltage | DC 24 V (18…30 V) |
|---|---|
| Rated current | 80 A |
| Ambient temperature | 0 °C ... +60 °C |
| Mounting method | rail mounting |
| Certificates | UL 2367, UL 508 listed, CSA C22.2 No. 14, PROFINET, REACH, RoHS, CE, UKCA |
Downloads
- Datasheet CPC20EN 4.5 MB
- Datasheet CPC20PN 4.6 MB
CAD data | 1
- CPC20 3.4 MB
Declarations of conformity | 6
- EU Declaration of Conformity 132.8 KB
- RMI CMRT 1.5 MB
- RMI EMRT 1.7 MB
- Statement on per- and polyfluoroalkyl substances (PFAS) 180.1 KB
- REACH 267.2 KB
- TSCA Letter of Confirmation 244.1 KB
E-plan macros | 1
- CPC20 768.1 KB
Operating manual | 3
- [Translate to Englisch:] CPC20 bus controller 3.1 MB
- CPC20EN 2.3 MB
- CPC20PN 2.2 MB
