Type 1616-92
Description

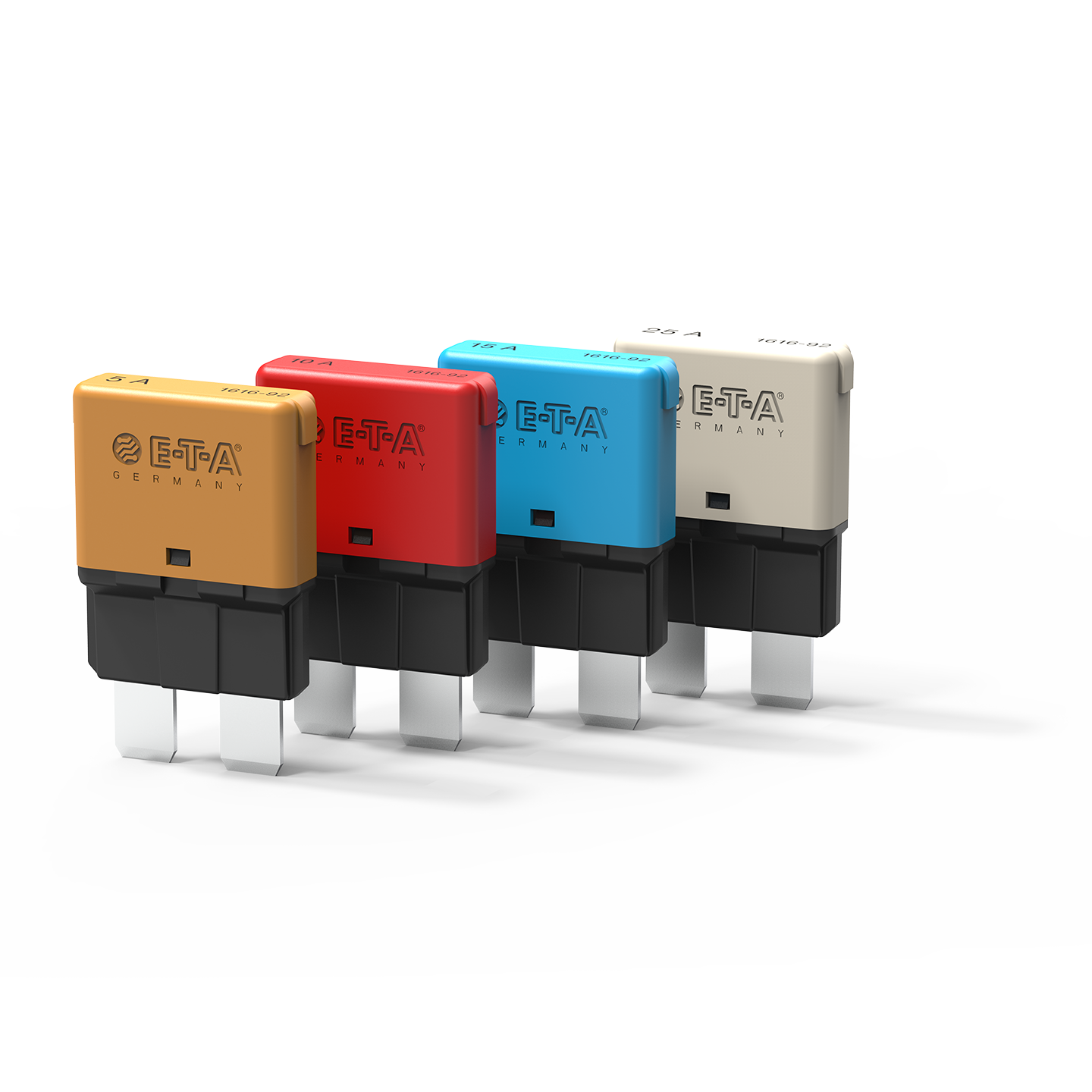

Single pole, thermal circuit protector in miniature design, specifically suitable for automotive applications. Design according to ISO 10924-4. The reversible circuit protector fits into fuse holders designed for blade fuse inserts according to ISO 8820-3. The available rated currents correspond to those of the blade fuse series. Clear identification of the rated current is achieved by colour coding. Fuses and circuit protectors of the same colour have the same rated current. Devices with current ratings from 7.5 to 30 A have a fast characteristic curve that can sustain only 70 % of the rated current as a continuous load.
Technical Data
| Voltage rating |
|
|---|---|
| Current ratings |
from 5 A up to 30A |
| Number of poles | single pole |
| Mounting method | socket |
| Terminal design | blade terminals |
| Actuation | manual release |
| Auxiliary contacts | without auxiliary contacts |
| Water splash protection | without water splash protection |
| Illumination | without illumination |
| Typical life | 300 operations at <= 50 A |
| Interrupting capacity Icn |
>= 3 break operations at 150 A, or >= 1 break operation at 2,000 A |
Accessories
| Order number | Description | |
|---|---|---|
| 12-P10/-J20/-A10 |
sockets |
|
| X21058801-04 |
Connector bus links -P10 01 = 1.5 mm2 brown
02 = 2.5 mm2 black
03 = 2.5 mm2 red
04 = 2.5 mm2 blue |
|
| X21115701/02 |
busbar for mounting socket 01 = with terminal
02 = without terminal |
Applications
- Automobiles
- Commercial Vehicles
- Watercraft & Vehicles
